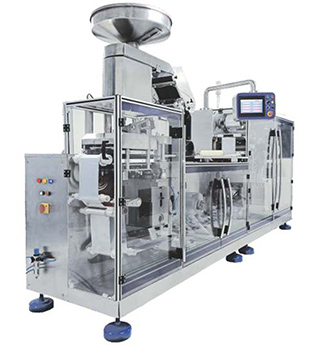

Model NT 240
Applications:
Technical Specifications:
| Specification | Value |
| Max Foil Width | 200 mm |
|---|---|
| Max Forming Advance | 140 mm |
| Base Film Thickness Max | 0.2 mm-0.4 mm |
| Lid Foil Thickness Max | 0.02 mm - 0.06 mmv |
| Forming Area | 190 mm x 138 mm |
| Speed | 40 Cycles/min (Cold Forming) |
| 40 Cycles/min (Thermo Forming) | |
| Max Forming Depth | 12 mm |
Product Details :
Features:
- The machine is suitable to produce blisters with various foils like PVC, PVC/PVDC, PET, COC, ACLAR, and ALU/ALU types of material for forming the blister cavities.
- The machine is suitable to pack both tablets and capsules.
- The machine is a flat-forming and flat-sealing model.
- Product feeding is designed based on product shape.
- Change parts can be fitted with minimum tools.
- Trim is cut and collected in a separate box.
- The machine has a print registration control system as an option.
- Sealing is flat sealing and produces the best quality of seal without any leak issue.
- Embossing and perforation stations are available as options.
- The machine has four servo motors for product feeding, web indexing, punch indexing and punching, and picking and placing blisters.
- Safety guards are made elegant for easy operation support.
- HMI carries three-level password control and can be assigned to individuals as per the need.
- The NFD option according to the need can be integrated.
- Blister machine carry rotary pick and place system for holding the blister and delivering on the conveyor smoothly the completed blister pack.
- The machine is built with a batch code printing unit.
Packing Materials:
- Base film thermoformable PVC, PVC with PE/ PVDC, COC, ACLAR, PET.
- Cold-forming tri-laminated aluminum.
- Lidding foil—heat-sealed aluminum.
