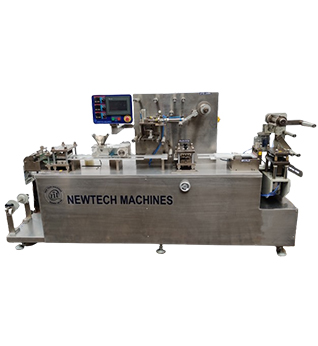

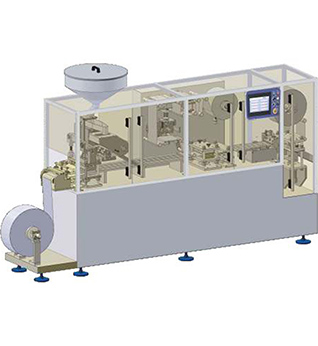

Model NT 120
Applications:
Technical Specifications:
| Specification | Value |
| Type of Forming | Thermo Forming, Cold Forming |
|---|---|
| Above Cycles/Min | 20 Cycles/min |
| Forming Area | 98 mm x 150 mm |
| Forming Depth | 12 mm |
| Pack Advancement | Max-100 mm, Min-30 mm |
| Max Roll Dia (Base Foil) | 450 mm x 160 mm |
| Max Roll Dia (Lidding Foil) | 270 mm x 160 mm |
Product Details :
Features:
- The machine is suitable to produce blisters with various foils like PVC, PVC/PVDC, PET, COC, ACLAR, and ALU/ALU types of material for forming the blister cavities.
- The machine is suitable to pack both tablets and capsules.
- The machine is a flat-forming and flat-sealing model.
- Product feeding is designed based on product shape.
- Change parts can be fitted with minimum tools.
- Trim is wound after punching.
- The machine has a print registration control system as an option.
- Sealing is flat sealing and produces the best quality of seal without any leak issue.
- Embossing and perforation stations are available as options.
- The machine has one servo motor for web indexing.
- Safety guards are made elegant for easy operation.
- HMI carries three-level password control and can be assigned to individuals as per the need.
- The machine is built with a batch code printing unit.
