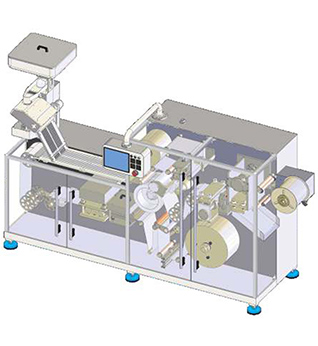

Model NT 200
Applications:
Technical Specifications:
| Specification | Value |
| Model | NT 200 |
|---|---|
| Hopper Capacity | 15L |
| Format Size | 250 x 180 mm |
| Advance Max | 180 mm |
| Max Film Width | 250 mm |
| Cycles of Operation | 40-50 Cycles/min (Thermo forming) |
| Power | 16 HP |
| Supply | 415V AC 50 Hz |
Product Details :
Features:
- The machine is suitable to produce blisters with various foils like PVC, PVC/PVDC, and PET types of material for forming the blister cavities. This machine is meant only for PVC/Alu blisters.
- The machine is suitable to pack both tablets and capsules.
- The machine is a flat-forming and rotary-sealing model.
- Product feeding is designed based on product shape.
- Change parts can be fitted with minimum tools.
- Trim is wound on a rotary bobbin in the machine.
- The machine has a print registration control system as an option.
- Sealing is rotary sealing and produces the best quality of seal without any leak issue.
- Embossing station is available as an option.
- The machine is having two servo motors for web indexing.
- Safety guards are made elegant for easy operation and safety.
- HMI carries three-level password control and can be assigned to individuals as per the need.
- The NFD option according to the need can be integrated.
