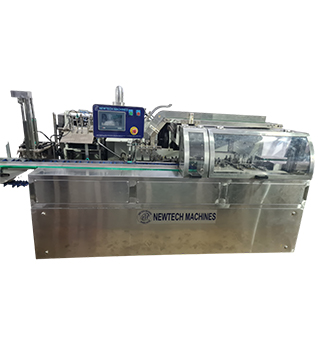

Fully Automatic Cartoning

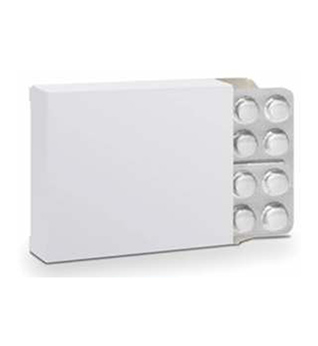

Applications:

Technical Specifications:

Specification NTC-80 NTC-120 NTC-150 NTC-400
Production Capacity 50-70 Boxes/min 90-110 Boxes/min 110-130 Boxes/min 200-300 Boxes/min
Size of Box (L x W x H) (50-190) x (25-90) x (15-70) mm (50-190) x (25-120) x (12-70) mm (50-190) x (25-90) x (15-70) mm (200 x 80 x 70) mm
Specification of Box 250-300 g/m² 250-300 g/m² 250-300 g/m² 250-300 g/m²
Size of Leaflet (L x W) (110-260) x (100-180) mm (110-260) x (100-180) mm (110-260) x (100-180) mm (260x 180)x(110)mmx100
Specification of Leafle 55-70 g/m² 55-70 g/m² 55-70 g/m² 55-65 g/m²
Air Consumption 10 m³/h 10 m³/h 10 m³/h 20 m³/h
Total Power 380V 50HZ 1.5 kW 380V 50HZ 1.5 kW 380V 50HZ 1.5 kW 380V 50HZ 6.9 kW
Overall Dimension (L x H x W) 3300 x 1320 x 1700 mm 3300 x 1200 x 1700 mm 3300 x 1200 x 1700 mm 4500 x 1460 x 1800 mm
Weight 1200 kg 1500 kg 1500 kg 3000 kg

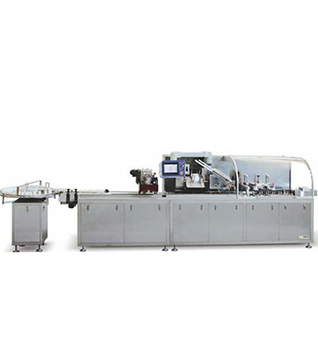

Product Details :

Features:

  • This machine is suitable for packing blisters, tubes, ampoules, and other related objects into boxes.
  • It can be run continuously, and the highest speed can be up to 260 boxes per minute.
  • has the advantages of high packing efficiency and good quality and is a high-tech product with a mechanical-electrical integration structure.
  • This machine can fold a leaflet, open a box, insert a blister into the box, emboss a batch number, and then close or seal automatically.
  • It uses a frequency inverter to adjust speed, a human-machine interface to operate, a PLC to control, and a photoelectric to supervise and control each station. So that once something unexpected happens, speed is running.
  • It will stop and display the reasons automatically, which can solve the troubles in time.
  • This machine can be used separately and can also be linked to other machines to be a production line.
